JC-Indoor Portable Energy Storage Power

JC-LiH5100

JC-Indoor Portable Energy Storage Power

—PRODUCT OVERVIEW

—PRODUCT HIGHLIGHTS


JC-LiH5100 HOME ENERGY SYSTEM

Features:

-lnteractive touch screen to show the working status and faulty diagnosis of the machine clearly

-With built in wifi router and APP to monitor and control your home energy system in real time using your

-Flexible Charging Mode

-Capable of charging most inductive load which below 2KW

-Convert single phase to split phase by adding a bluetti split phase box

-A wide range of PV input voltage by adding a PV step–down module

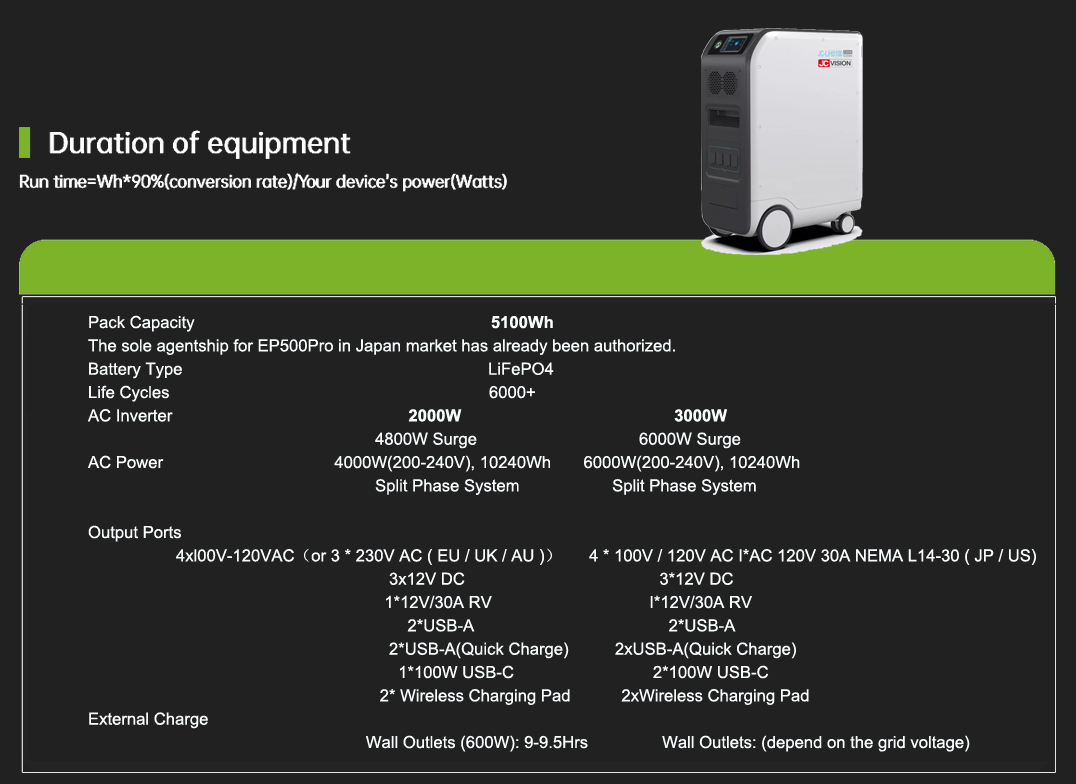

Model

JC-LiH5100

Built–in Battery

51.2V 5.1KWH Lifepo4

Charging Power

Solar

MPPT 55–145VDC 1200W

AC Charge

600Wmax

Output

AC

2000W, 4800W max

DC

2xUSB 5Y 3.0A 2XUSB18wQC3.0 1xTypeC (PD3.0 100W)

1x12V10A Cigarette Lighter 2X12V 3A 1x12V30A Aviation Socket Wireless Charging 2X15W

1/3–Phase

Split phase(For 100~120V mains voltage) Two units can be connected in parallel, revert single phase to double phase

WORKING MODE

off–Grid

LCD Screen

4.3 inch touch Screen

UPS Function

YES ≤20ms Mains supply priority mode / PV priority mode

WiFl Function

Yes

Remote Monitoring

Yes, through web or APP

Communication

RSh85

Material for casing

ABS+PC94V0

N.W.

75KC

Dimension LxWxH(mm)

580x300x760mm
